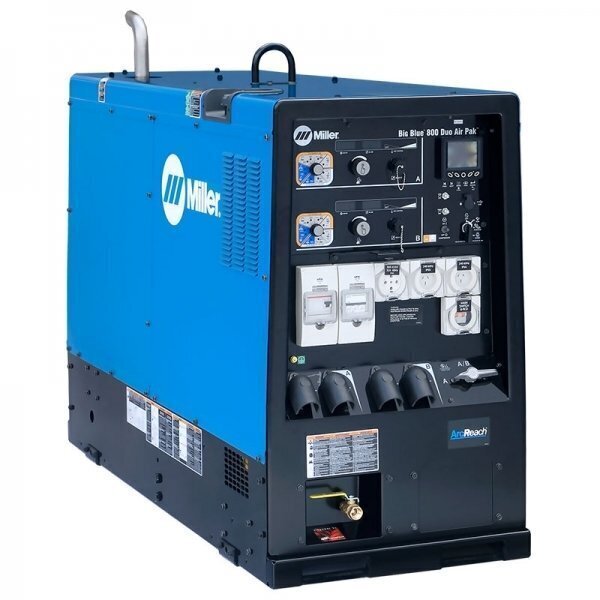

Big Blue 800X Duo Air Pak with ArcReach [Dual VRD]

UNBEATABLE POWER
The Big Blue® 800X is
the most powerful diesel
generator in the industry.

INGERSOLL RAND
ROTARY SCREW
AIR COMPRESSOR
30,000-hour life
expectancy.
Independent on/off
control for applications
not requiring
compressed air —
allows greater fuel
savings and longer
compressor service
intervals.

DUAL OPERATOR
CAPABILITY
One dependable
engine – two
independent arcs with
up to 400 Amps each.
Operators can work
independently with
no arc interaction.

MULTI-ARC WELDING
Plug in additional
inverters for a true
multi-operator work
platform!
Two additional XMT®
multi-process machines
equal four operators,
up to 200 Amps each.

SPECIFICATIONS
Generator power 240 V
60 Hz****: Peak: 5,500/
Continuous 4,000 W
Generator power 415-
380 V 60 Hz****: Peak:
27,000/Continuous
20,000 W dependent
of weld output
Duetz turbo charged
4-cylinder liquid cooled
industrial diesel engine
with 95 L fuel tank
1 x 415 V 32 A 60 Hz,
2 x 240 V 15 A 60 Hz
VRD to CAT C AS 1674.2
917kg without fuel
40 – 800 A at 100%
Duty Cycle (Paralleled)
20 – 400 A at 100%
Duty Cycle (Separate
dual outputs)
