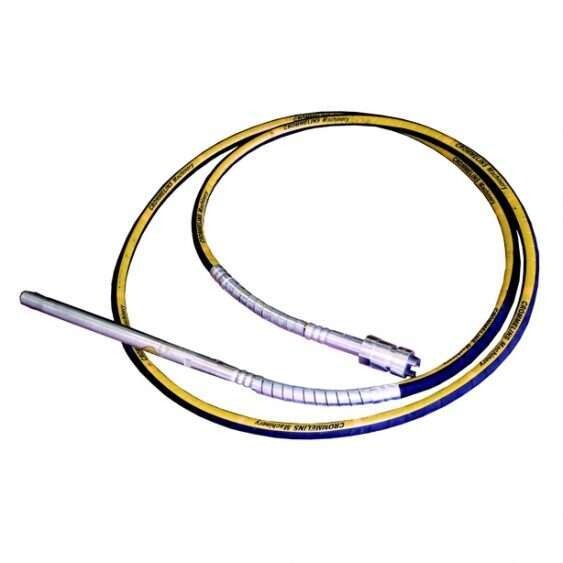

Crommelins Vibrator Shaft 60mm

00572
AU$0.00
In stock
1
Product Details

Vibrator Shaft for 3-dog drive units.

This 60mm vibratory shaft attaches to ‘3 dog’ drive units.

Perfect for fast, effective compaction of concrete pours in footings and formwork, this model is also available in 9m lengths.

  • Strong, durable shafts for demanding jobs 2 piece oil seals double the protection from grease seeping into the rotary head and reducing power
  • High tension spring coupling between inner cable and rotor provides better vibration and longer life
  • Protective spirals on both ends of the shaft minimises kinking and damage
  • High quality inner cable and multilayered outer casing
  • ‘Flats’ on removable parts makes servicing quick and easy
  • Quality self aligning double row ball bearings are used to withstand high loadings
Model Number JV60
Shaft Size (mm) 60mm
Shaft Length (m) 6.0m
Frequency (vpm) 13500vpm
Weight (kg) 21.5kg
Dimensions (LxWxH) mm 6000 x 60 x 60mm
Manufacturers Warranty 1 Year
Barcode 9336493004449
