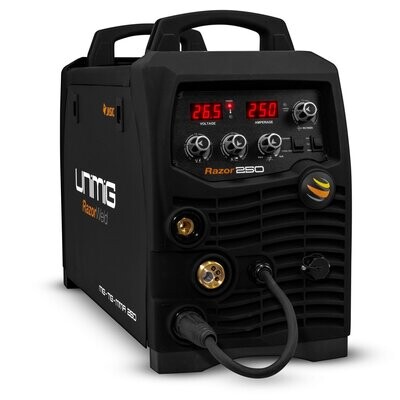

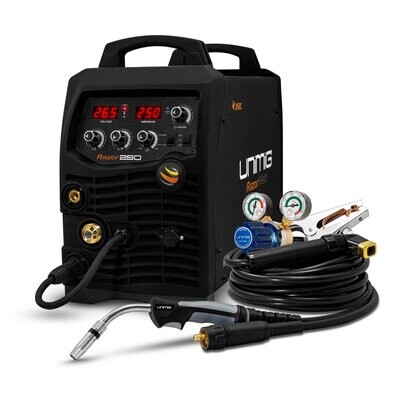

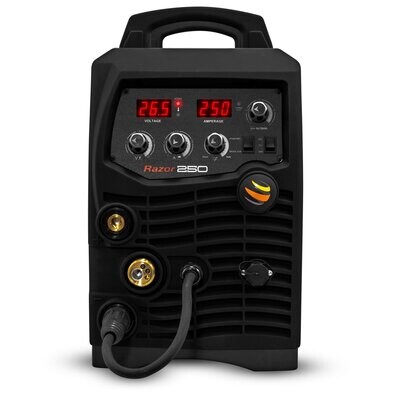

RAZOR 250 MIG/TIG/STICK WELDER
+3

RAZOR 250 MIG/TIG/STICK WELDER

00281
AU$0.00
In stock
1
Product Details

Product No: KUMJRRW250MIG

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

11.0

Ieff (A)

28.0

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

54

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.72

MINIMUM GENERATOR (kVA)

13.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

30% @ 250A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-12mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-250A

TIG DUTY CYCLE @ 40°C

30% @ 250A

TIG WELDING THICKNESS RANGE

1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-250A

STICK DUTY CYCLE @ 40°C

30% @ 250A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

585x280x440mm

WEIGHT (kg)

30kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
