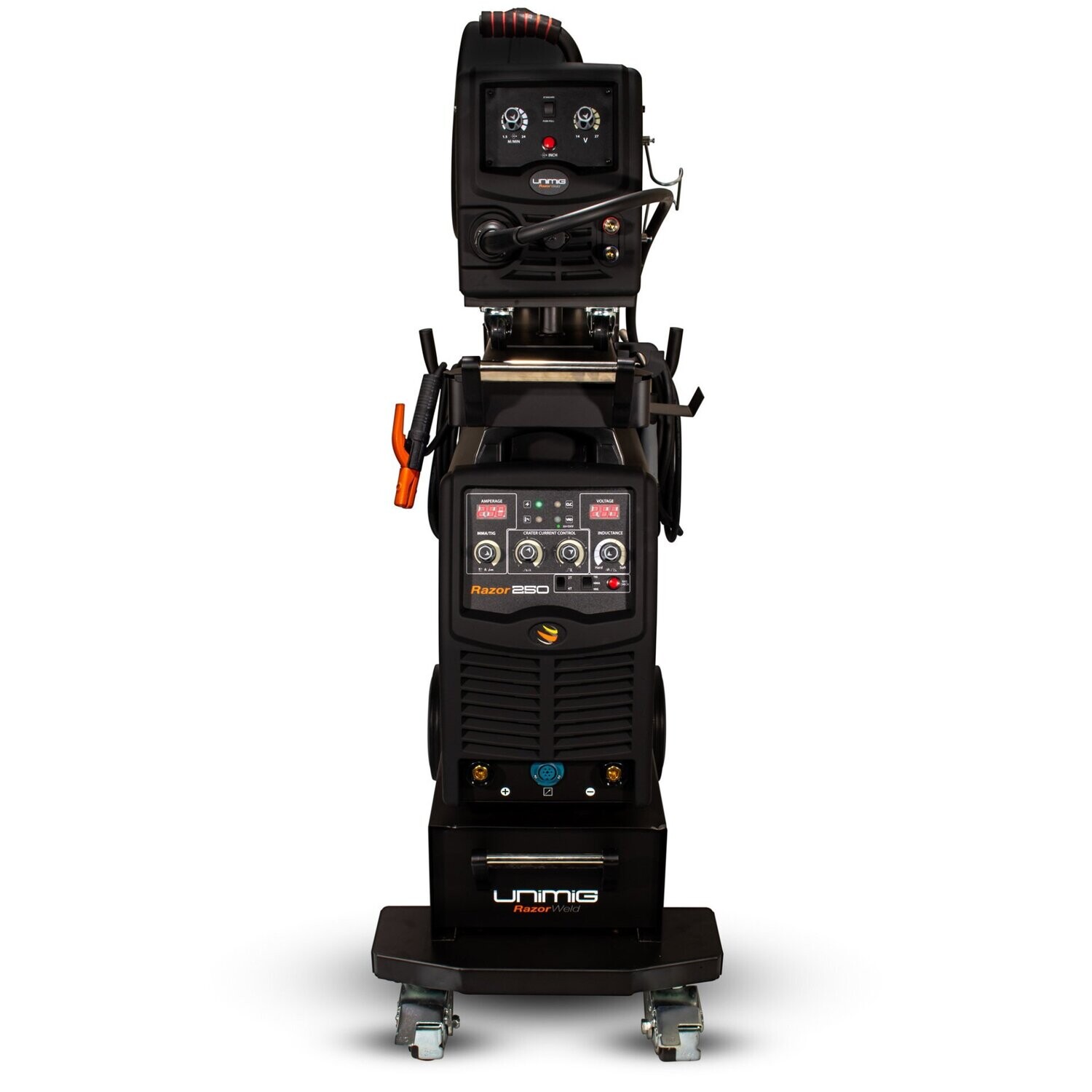

RAZOR 250 SWF MIG/TIG/STICK WELDER
+3

RAZOR 250 SWF MIG/TIG/STICK WELDER

00285
AU$0.00
In stock
1
Product Details

Product No: KUMJR250SWF

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single-Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

12.2

Ieff (A)

28.0

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

56.5

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.72

MINIMUM GENERATOR (kVA)

13.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

35% @ 250A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-12mm

DRIVE ROLLER SIZE

30/22 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-225A

TIG DUTY CYCLE @ 40°C

35% @ 225A

TIG WELDING THICKNESS RANGE

1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-250A

STICK DUTY CYCLE @ 40°C

35% @ 250A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

595x280x440mm

WEIGHT (kg)

40.6kg

SWF DIMENSIONS (mm)

630x235x420mm

SWF WEIGHT (kg)

14kg

SWF INTERLOCKING CABLE LENGTH (m)

10m

MACHINE FEATURES

WIRE DRIVE

Seperate 4 Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

PUSH / PULL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
