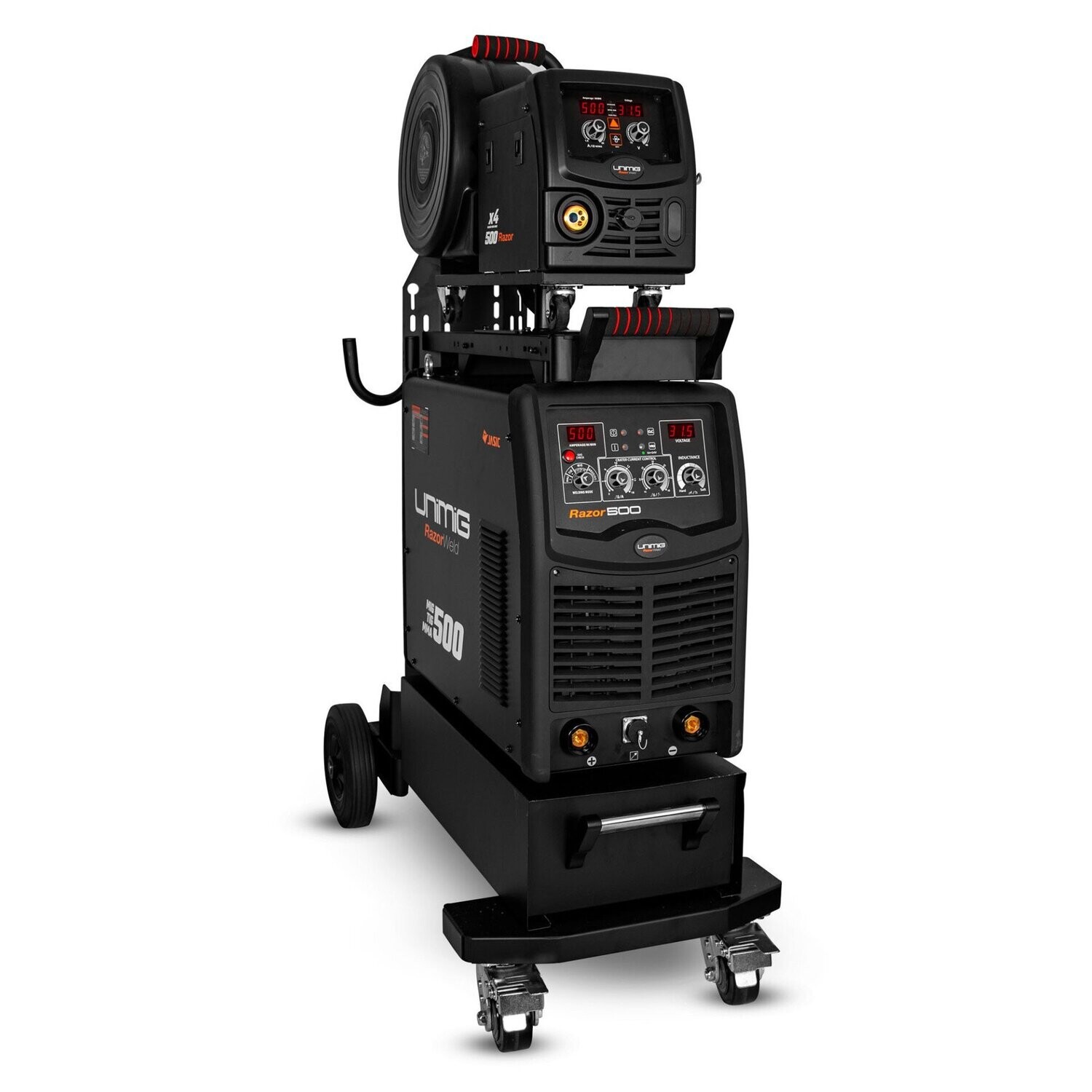

RAZOR 500 SWF MIG/TIG/STICK WELDER
AU$0.00
In stock
Product Details
Product No: KUMJRRW500SWF
UNIMIG 500 SWF
The UNIMIG 500 SWF is an inverter based MIG welding machine with added MMA function. This is an industrial machine equiped with a separate 4 wheel gear driven wire feeder and 10m interconnecting cables. The MIG function allows you to weld with solid and Flux Cored Gasless wires. Adjustment of Voltage & Wire Feed at the wire feeder make for easy setting of welding parameters and give the convenience of remote adjustment from the power source.
Crater Current setting delivers perfect finishing of the weld, the electronic inductance offers fine adjustment of the arc characteristic and burn back adjustment leaves the wire stick out ready for the next weld. Wire inch and Gas Check provides set up of wire feed and gas setting without any waste of wire or gas.
Added MMA welding capability delivers easy and high quality welding using electrodes, including cast Iron, stainless steel and low hydrogen.
Ideal for heavy and structual welding applications, general engineers, maintainance workshop and rural workshops.
Designed and built to our specification.
Certified to - AS/NZ60974.1
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
415V Three-Phase
SUPPLY PLUG
No plug supplied (32 AMP Recommended)
RATED INPUT POWER (kVA)
25.3
Ieff (A)
24.3
RATED OUTPUT
50A/17V - 500A/39.0V
NO LOAD VOLTAGE (V)
85
PROTECTION CLASS
IP23
INSULATION CLASS
F
POWER FACTOR
0.93
MINIMUM GENERATOR (kVA)
26.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years)
3
MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE
50-500A
MIG DUTY CYCLE @ 40°C
60% @ 500A
MIG WIRE SIZE RANGE
0.6-1.6mm
MIG WIRE SPOOL SIZE
5kg / 15kg
MIG WELDING THICKNESS RANGE
1-30mm
DRIVE ROLLER SIZE
30/10 (x2)
TIG SPECIFICATIONS
TIG FUNCTION TYPE
DC Lift Arc
TIG WELDING CURRENT RANGE
20-500A
TIG DUTY CYCLE @ 40°C
60% @ 500A
TIG WELDING THICKNESS RANGE
2-10mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20-500A
STICK DUTY CYCLE @ 40°C
60% @ 500A
STICK ELECTRODE RANGE
2.5-6.0mm
STICK WELDING THICKNESS RANGE
2-20mm
SIZE & WEIGHT
DIMENSIONS (mm)
595x280x440mm
WEIGHT (kg)
43kg
SWF DIMENSIONS (mm)
630x235x420mm
SWF WEIGHT (kg)
14kg
SWF INTERLOCKING CABLE LENGTH (m)
10m
MACHINE FEATURES
WIRE DRIVE
Seperate 4 Geared
VRD
Yes
SPOOL GUN CONNECTION
Yes
PUSH / PULL GUN CONNECTION
Yes
BURNBACK ADJUSTMENT
Synergic
WIRE INCH
Yes
INDUCTANCE CONTROL
Yes
CRATER CURRENT CONTROL
Yes
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
AIR ARC GOUGING
Yes
