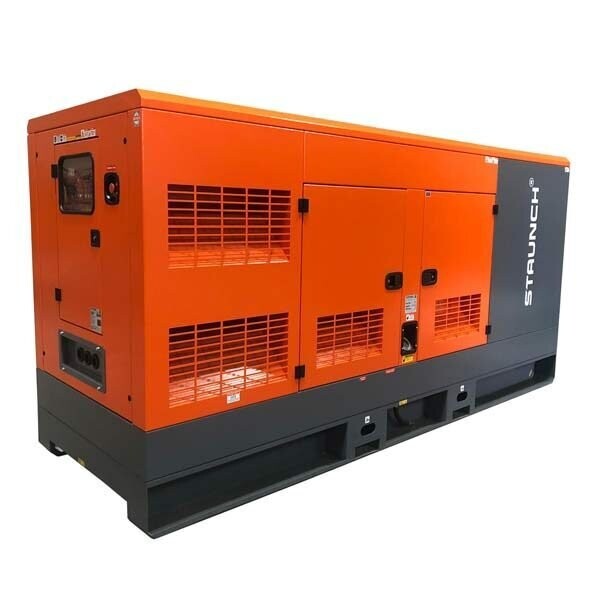

Staunch Cummins 275kva Generator STCG275S-M
+13
+12
+11
+10
+9
+8
+7
+6
+5
+4
+3
+2

Staunch Cummins 275kva Generator STCG275S-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 250 kVA
Standby Rated Output 275 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 227 kW
Standby Power 257 kW
Manufacturer CUMMINS
Model QSL9-G3
Injection Type Direct
Aspiration Type Turbocharged and charged air cooled
Cylinders Arrangement in line
Bore and Stroke 114 x 145 mm
Displacement 8.8 L
Cooling System Air charge cooled
Fuel Consumption 100% PRP 59 l/h
Fuel Consumption 75 % PRP 49 l/h
Fuel Consumption 50 % PRP 34 l/h
Total Oil Capacity 26.6 L
Total Coolant Capacity 15.0 L
Governing Class ISO 8528
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
MARELLI MJB 250 LB4
Poles 4
Phase Three
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 1,400 L
Autonomy 100% load 24 Hours
Weight and Dimensions
Length 1624 mm
Height 1064 mm
Width 1463 mm
Weight (dry) Kg
Noise level @ 7m 65 dB
