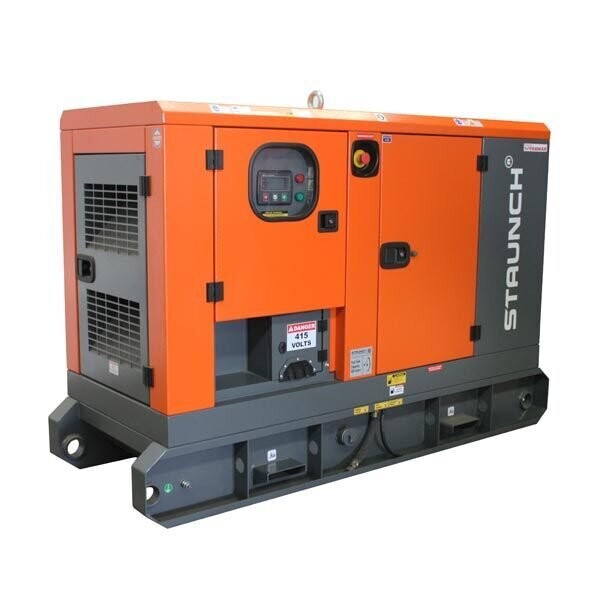

Staunch Yanmar 20kva Generator STYG20R-3S
+8
+7
+6
+5
+4
+3
+2

Staunch Yanmar 20kva Generator STYG20R-3S

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 20.0 kVA
Standby Rated Output 22.0 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 240 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 16.4 kW
Standby Power 17.4 kW
Manufacturer YANMAR
Model 4TNV88
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement 4 – L
Bore and Stroke 88 x 90 mm
Displacement 2.19 L
Cooling System coolant
Lube Oil Specifications SAE 3 class 10W30 / API grade CD,CF
Fuel Consumption 100% PRP 4.27 l/h
Fuel Consumption 75 % PRP 3.29 l/h
Fuel Consumption 50 % PRP 2.4 l/h
Total Oil Capacity 7.4 L
Total Coolant Capacity 5.5 L
Governor Mechanical
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
STAMFORD P144D1
Poles 4
Phase Three
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 100 L
Autonomy 100% load 23.4 Hours
Weight and Dimensions
Length 1960 mm
Height 1330 mm
Width

750 mm
Weight (dry) 700 Kg
Noise level @ 7m 67 dB
