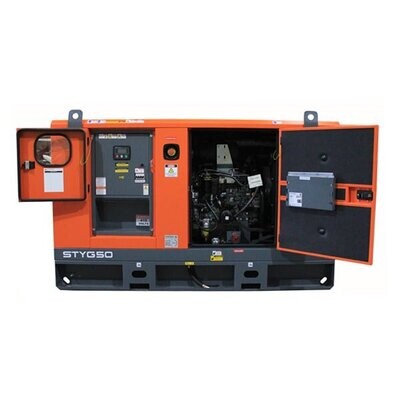

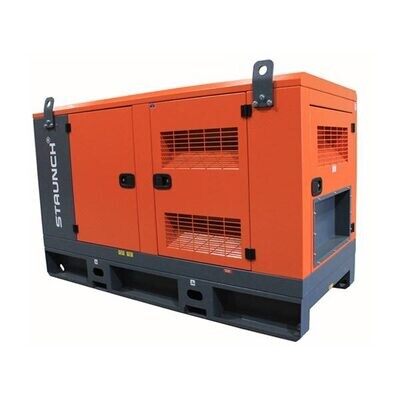

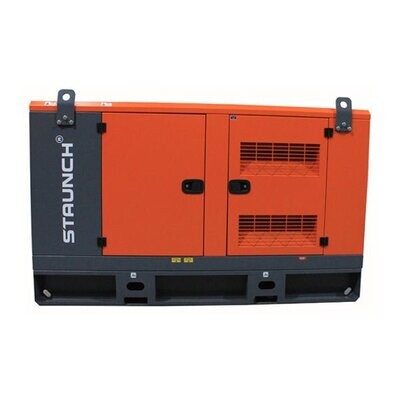

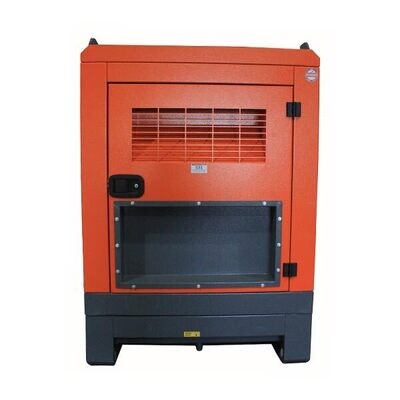

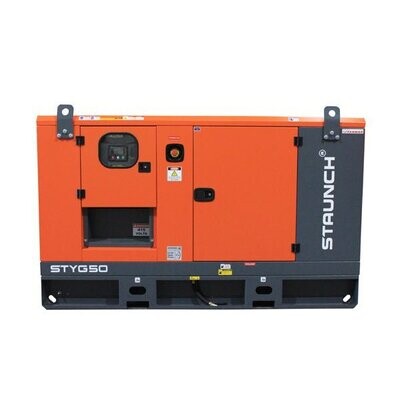

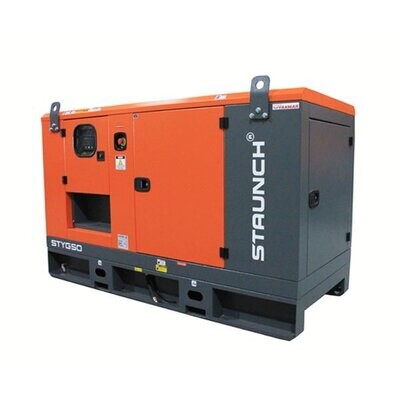

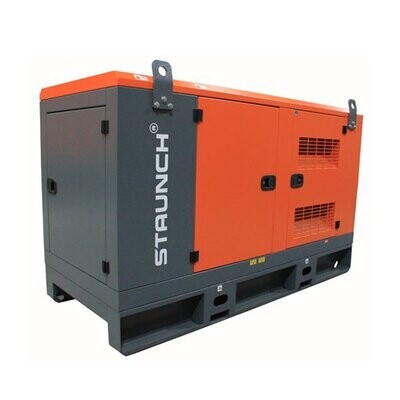

Staunch Yanmar 35kva Generator STYG35S-1ST

Store / Generators / Large Diesel / Single Phase 240v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 21 kVA
Standby Rated Output 23 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 240 V
Available Voltages 240/415 V
Rated at power factor 1.0 Cos Phi

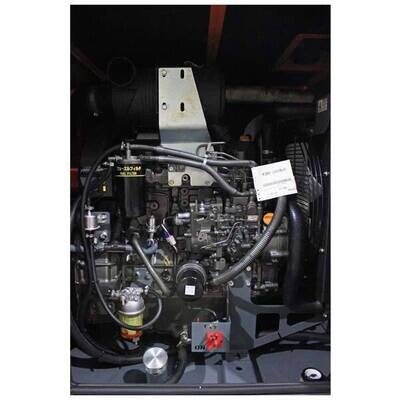

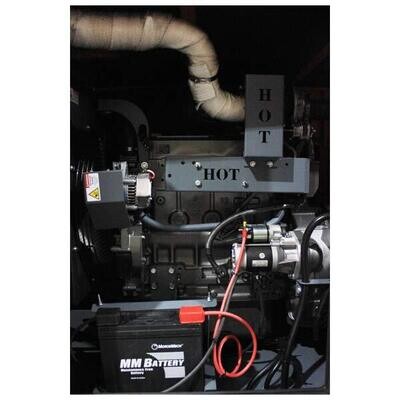

ENGINE SPECS
Prime Power 25.6 kW
Standby Power 28.0 kW
Manufacturer YANMAR
Model 4TNV98
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement 4 – L
Bore and Stroke 98 x 110 mm
Displacement 3.319 L
Cooling System coolant
Lube Oil Specifications SAE 3 class 10W30 / API grade CD,CF
Fuel Consumption 100% PRP 7.60 l/h
Fuel Consumption 75 % PRP 5.70 l/h
Fuel Consumption 50 % PRP 4.05 l/h
Total Oil Capacity 10.50 L
Total Coolant Capacity 9.0 L
Governor Mechanical
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
STAUNCH STA184G
Poles 4
Phase Single
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 170 L
Autonomy 100% load 22.4 Hours
Weight and Dimensions
Length 2280 mm
Height 1340 mm
Width 980 mm
Weight (dry) Kg
Noise level @ 7m 65 dB
