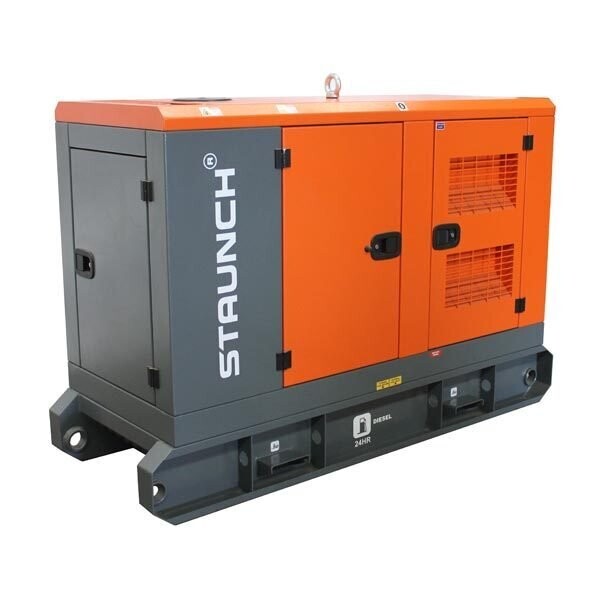

Staunch Yanmar 7kva Generator STYG9R-1S

Store / Generators / Large Diesel / Single Phase 240v
AU$0.00
In stock
Product Details

Model: STYG9R-1S

Engine

· Diesel engine
· 4 strokes-cycle
· Water-cooled
· 12V Electrical system
· Radiator with blowing fan
· Water separator decanting filter (visible level)
· Mechanical governor· Dry air cleaner
· Hot components and radiator guards
· Mobile components guards

Generating Sets Standard and Optional Features

Engine
 · Diesel engine
· 4 strokes-cycle
· Water-cooled
· 12V Electrical system
· Radiator with blowing fan
· Water separator decanting filter (visible level)
· Mechanical governor· Dry air cleaner
· Hot components and radiator guards
· Mobile components guards

EngineGenerating Sets Standard and Optional Features· Self-excited and Self-regulated· IP23 protection degree· Insulation H class· Control and power electric panel, with measurements devices and controller (according to necessity and configuration)· Earth leakage protection adjustable (time & sensibility) standard · 2 poles circuit breaker· Battery charger (standard on automatic control panels)· Pre-heating resistance (standard on automatic control panels) / water jacket heater· Battery charge alternator with ground connection· Starting battery/ies installed and connected to the engine (supports included)· Ground connection electrical installation with connection ready for ground pike (not supplied)

GENERATOR SPECS
Prime Rated Output 7 kVA
Standby Rated Output 7.7 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 240 V
Available Voltages 240/415 V
Rated at power factor 1.0 Cos Phi
ENGINE SPECS
Prime Power 7.2 kW
Standby Power 7.9 kW
Manufacturer YANMAR
Model 3TNV76
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement 3 – L
Bore and Stroke 76 x 82 mm
Displacement 1.116 L
Cooling System coolant
Lube Oil Specifications SAE 3 class 10W30 / API grade CD,CF
Fuel Consumption 100% PRP 2.31 l/h
Fuel Consumption 75 % PRP 1.77 l/h
Fuel Consumption 50 % PRP 1.4 l/h
Total Oil Capacity 4.4 L
Governor Mechanical
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
STAMFORD P1044E
Poles 4
Phase Single
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 100 L
Autonomy 100% load 43.3 Hours
Weight and Dimensions
Length 1960 mm
Height 1330 mm
Width 750 mm
Weight (dry) 630 Kg
Noise level @ 7m 67 dB
